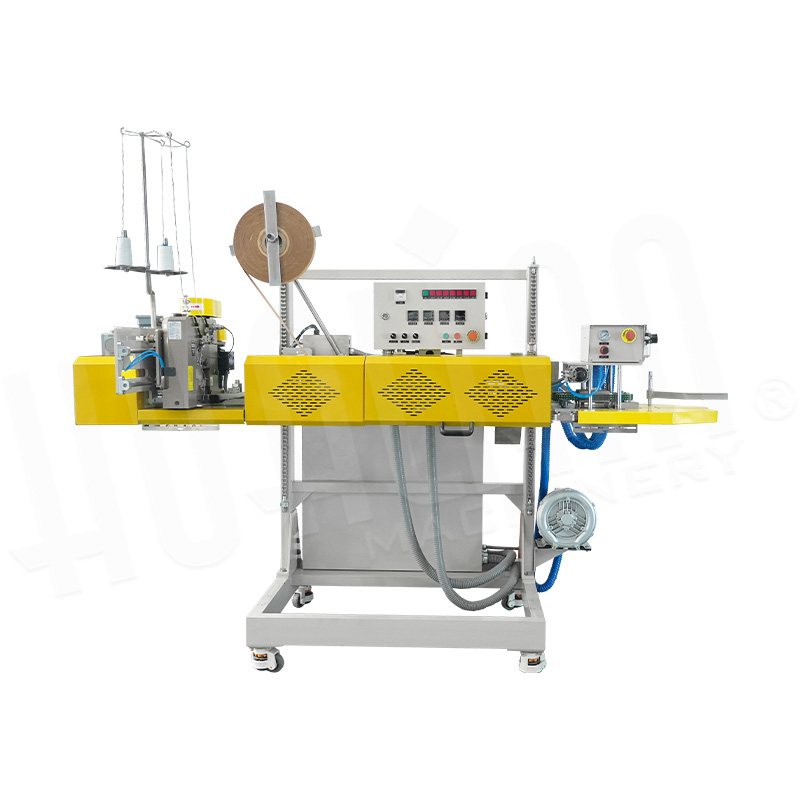

• FBK-2 series Heavy-Duty Bag Closing and Sewing Machine
| √ | High Efficiency | √ | High Output |
| √ | Small Footprint | √ | Multi-function |
| √ | Good Sealing Appearance |
•Mode Of Bag Top Packaging
First stitched, then add thermosal paper tape for heating closure.
•Sealing Procedure Sequence
Dedusting Optional-Sttching-Trimming-Paper wrapping band-Heating-Pinching.
Product Advantages
| Stability
Bag Sealing Sewing Packaging Machine adopts advanced sealing technology, the sealing quality is stable and reliable. And the controllable constant temperature heating mechanism is used to heat and seal the liner bag and the hot melt adhesive tape to make the bag mouth sealed.It is not easy to have problems such as air leakage and powder leakage, which ensures the quality and safety of packaging. |
 |
 |
Multi-functional
The heavy bag continuous sealing machine can be applied to various types of bags, such as single (multi) layer kraft paper bags with PE plastic inner bags, paper-plastic composite bags or paper-plastic woven composite bags. It can automatically achieve dust removal (optional), bag opening trimming, inner bag heat sealing, inner bag pressing, sewing, hot melt adhesive tape, paper cutting tape, heating, paper tape pressing and counting functions at one time. |
| Easy Operation
Bag stitching sealing machine is easy to operate. Just follow the instructions on the device and no special training is required. |
 |
 |
Environmental Protection
Heavy bag continuous sealing machine can reduce energy consumption and waste rate in the packaging process, reduce pollution to the environment, and meet the environmental protection requirements of modern society. |
| Packaging Line Capacity
The front end of the heat sealing machine can be equipped with a bagging machine to load the bags, and the rear end is equipped with a bag dumper and a vibrator to make the materials in the bags flat and even, and finally transported to the palletizing workstation for palletizing via a conveyor belt. |
 |
 |
Automation
Industrial bag packaging machine can be programmed by PLC to automatically complete the whole process of packaging; the transmission mechanism of the machine adopts a special clamping chain, equipped with a frequency converter to achieve the synchronization of the input of the packaging bag and the operation of the sewing machine. The electromagnetic clutch is used to control the operation and braking of the sewing machine, and the positioning is accurate. |
| Convenience Of After-sales Repair
Excellent after-sale purchase without worry Warranty is one year. Professional after-sale one -to-one Provide remote assistance services |
|
Application Field
 |
 |
 |
| Chemical Industry | Compound Fertilizer Industry | Engineering Plastic Industry |
 |
 |
 |
| Feed Industry | Food Additives Industry | Medical Intermediate |
| Model | FBK-23C | FBK-23DC | FBK-24C | FBK-24DC |
| Voltage(V/Hz) | AC 380/50 | |||
| Gross Power（KW） | 4.5 | 5 | 5.5 | 6 |
| Transmission Power（KW) | 0.75 | 0.75 | ||
| Motor Power of Sewing Machine（KW) | 0.37 | |||
| Heating Power（KW) | 0.5×6 | 0.5×8 | ||
| Deduster Power（KW) | – | 0.6 | – | 0.6 |
| Sealing Speed(m/min) | 8.5(Customized upper limit 11) | |||
| Height From Sealing Center to the Floor(mm) | 750-1450 | |||
| The minimum distance between the top of bag (mm) | 180 | |||
| Temperature Range(℃) | 0-400 | |||
| Air Source Pressure(Mpa) | 0.6 | |||
| Paper tape | △ | △ | △ | △ |
| Deduster | × | √ | × | √ |
| Application | Multi-layer paper bag、paper-PE compound bag .2 in 1 or 3 in 1 bag, AL-PE inner liner bag or PE bag, etc. | |||
| External Dimension(L×W×H)(mm) | 2700×950×1800 | 2800×950×1800 | ||
| Net Weight (kg) | 400 | 450 | 500 | |
We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Our Hualian products have 7 categories and more than 200 products. We have nearly 30 years of export experience and export to more than 200 countries. The distributors of different categories and countries are different. You can consult our sales for details.
We have rich experience in exporting products. For the common problems of conventional products, we have compiled relevant information sets (FAQ Q&A, unpacking videos, after-sales videos, etc.); at the same time, we have a professional technical team. If you encounter special problems, our sales staff will organize technical groups to provide online guidance.
Each of our machines comes with a set of random accessories. If you have additional needs, you can reserve 1-2 years of easily damaged accessories when you purchase the machine. In addition, you can purchase them together when you purchase the next time. Even if it is an iterative accessory, Hualian will continue to provide it.
1) Before delivery, you can come to our company for on-site operation and training
2) You can apply for paid customer on-site installation
3) For Hualian’s VIP customers and professional dealers, you can apply for local or off-site training of sales and technical teams every 1-2 years
Email, real-time online communication, online video conferencing, domestic and foreign exhibitions, domestic and foreign customer visits.
Regular maintenance, operation training, optimization of packaging materials
Food industry: such as the packaging of grain products such as rice and flour.
Chemical industry: such as the packaging of fertilizers, plastic particles and other products.
Building materials industry: such as the packaging of building materials such as cement, sand and gravel.
Yes, our bag dust removal function is to achieve this function
Yes, it is generally recommended that customers configure a 5-meter belt conveyor
Generally NEWLONG
Yes, the motor model and function of the explosion-proof motor can be communicated
