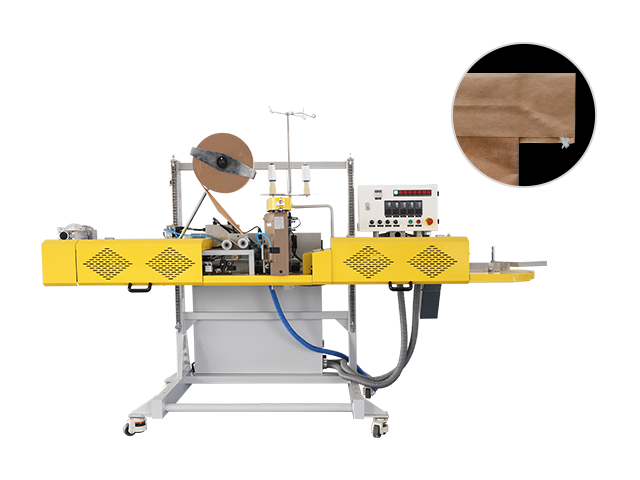

• FBK-332C series Heavy-Duty Bag Closing and Sewing Machine
| √ | High Efficiency | √ | High Output |
| √ | Small Footprint | √ | Multi-function |
| √ | Good Sealing Appearance |
•Mode Of Bag Top Packaging
First stitched, then add thermosal paper tape for heating closure.
•Sealing Procedure Sequence
Dedusting Optional-Sttching-Trimming-Paper wrapping band-Heating-Pinching.
Product Advantages
| High-efficiency Packaging
Heavy-Duty Bag Closing Machine can be programmed by PLC to automatically complete the sealing of bags without manual operation, which greatly improves the packaging speed and sealing quality and saves labor costs. And The pneumatic tape pulling and cutting functions are smooth and efficient, optimizing production efficiency. The packaging speed up to 510m/min-660m/min |
 |
 |
Precise Heating and Stable Packaging
This heavy-duty bag sealing machine uses a large and thick heating block to provide strong heat capacity, ensuring precise heating in heavy-duty packaging applications. The specially designed clip chain system ensures that the packaging bag and sewing machine run synchronously, effectively ensuring the accuracy and stability of the heating process and improving the overall packaging effect. |
| Multi-function
The heavy bag continuous sealing machine can be applied to various types of bags, such as single (multi) layer kraft paper bags with PE plastic inner bags, paper-plastic composite bags or paper-plastic woven composite bags. It can automatically achieve dust removal (optional), bag opening trimming, inner bag heat sealing, inner bag pressing, sewing, hot melt adhesive tape, paper cutting tape, heating, tape pressing and counting functions at one time. |
 |
 |
Convenience Of Premium Packaging
Equipped with advanced sealing technology, the machine guarantees stable and reliable sealing quality, effectively preventing air and powder leakage. The controllable constant temperature heating system precisely heats the liner bag and hot melt adhesive tape, further enhancing packaging quality and ensuring secure, leak-free packaging. |
| Easy Operation and Maintenance
The operation interface is simple, the fault alarm is clear and the temperature adjustment is convenient. |
 |
 |
Connect With Packaging Line
The transmission mechanism of the sealing machine adopts a special clamping chain, equipped with a frequency converter to achieve synchronization between the input of the packaging bag and the operation of the conveyor. It can form a production line with the conveyor, and can form a fully automatic packaging production line with automatic metering, automatic filling, stacking, arrow strapping and winding processes. |
| Convenience Of After-sales Repair
Excellent after-sale purchase without worry |
Application Field
 |
 |
 |
| Chemical Industry | Compound Fertilizer Industry | Engineering Plastic Industry |
 |
 |
 |
| Feed Industry | Food Additives Industry | Medical Intermediate |
| Model | FBK-332C |
| Voltage(V/Hz) | AC 380/50 |
| Gross Power（KW） | 6.5 |
| Transmission Power（KW) | 0.75 |
| Motor Power of Sewing Machine（KW) | 0.37 |
| Heating Power（KW) | 0.5×10 |
| Deduster Power（KW) | – |
| Sealing Speed(m/min) | 8.5(Customized upper limit 11) |
| Height From Sealing Center to the Floor(mm) | 750-1450 |
| The minimum distance between the top of bag (mm) | 180 |
| Temperature Range(℃) | 0-400 |
| Air Source Pressure(Mpa) | 0.6 |
| Paper tape | o |
| Deduster | × |
| Application | Multi-layer paper bag、paper-PE compound bag .2 in 1 or 3 in 1 bag, AL-PE inner liner bag or PE bag,etc. |
| External Dimension(L×W×H)(mm) | 3030×950×1800 |
| Net Weight (kg) | 600 |
We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Our Hualian products have 7 categories and more than 200 products. We have nearly 30 years of export experience and export to more than 200 countries. The distributors of different categories and countries are different. You can consult our sales for details.
We have rich experience in exporting products. For the common problems of conventional products, we have compiled relevant information sets (FAQ Q&A, unpacking videos, after-sales videos, etc.); at the same time, we have a professional technical team. If you encounter special problems, our sales staff will organize technical groups to provide online guidance.
Each of our machines comes with a set of random accessories. If you have additional needs, you can reserve 1-2 years of easily damaged accessories when you purchase the machine. In addition, you can purchase them together when you purchase the next time. Even if it is an iterative accessory, Hualian will continue to provide it.
1) Before delivery, you can come to our company for on-site operation and training
2) You can apply for paid customer on-site installation
3) For Hualian’s VIP customers and professional dealers, you can apply for local or off-site training of sales and technical teams every 1-2 years
Email, real-time online communication, online video conferencing, domestic and foreign exhibitions, domestic and foreign customer visits.
Regular maintenance, operation training, optimization of packaging materials
Food industry: such as the packaging of grain products such as rice and flour.
Chemical industry: such as the packaging of fertilizers, plastic particles and other products.
Building materials industry: such as the packaging of building materials such as cement, sand and gravel.
Yes, our bag dust removal function is to achieve this function
Yes, it is generally recommended that customers configure a 5-meter belt conveyor
Generally NEWLONG
Yes, the motor model and function of the explosion-proof motor can be communicated
