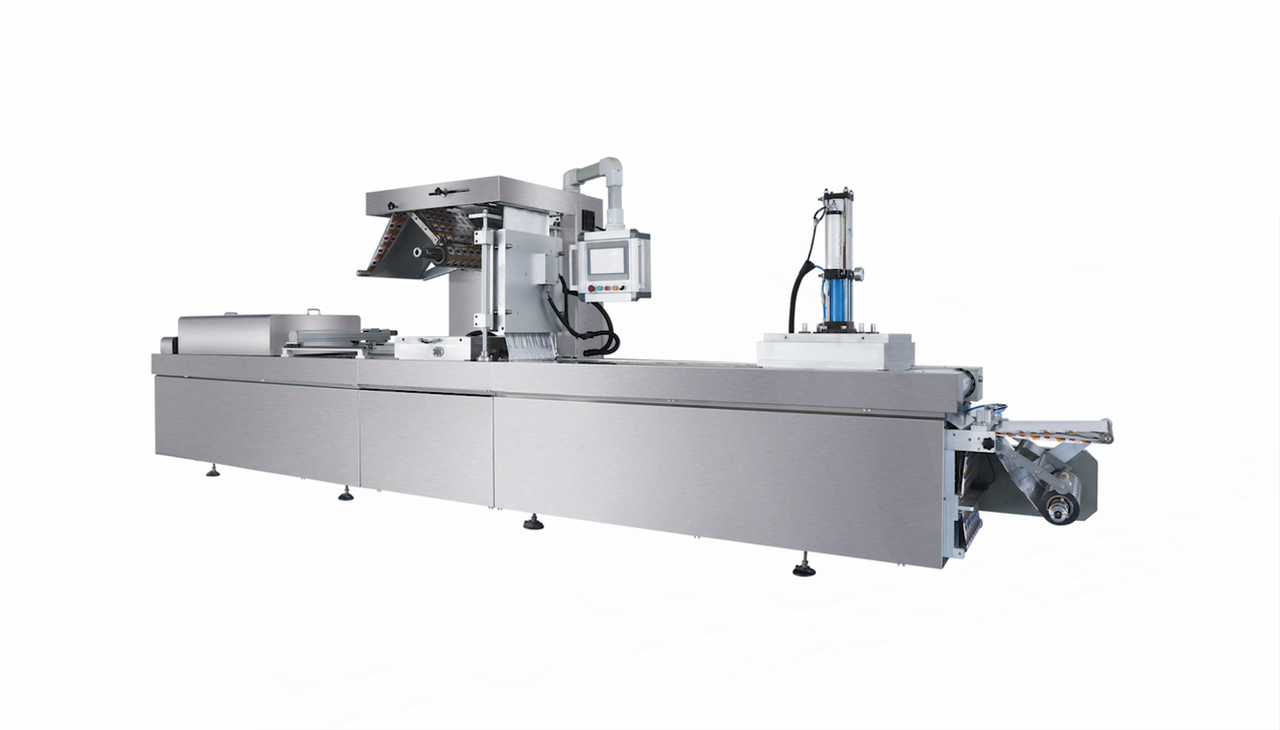

•HVT-S series Aluminum Film Thermoforming Packaging Machine
| √ | Keep Fresh | √ | High Production Output |
| √ | Double BUSCH Vacuum Pump | √ | Easy Maintenance |
| √ | Applicable With Packaging Line |
Product Advantages
| It is widely used to skin pack the products like kinds of snacks, meat, medical products, hardware, medical equipment, etc. And it is equipped with the device to do round angle, easy open and hang hole to the bag, which makes the bag prettier and practical. |  |
 |
It works with sensor for accurate positioning. Sensors and deviation rectification device for film fixed at the upper and bottom film holder ensure correct alignment of the pictures in the upper and bottom film. And it is available for transparent film or colo film to pack.
|
| It adopts removable moulds which enable single machine to meet different sizes of moulds. |  |
Application Field
 |
 |
 |
| Cheese | Chicken | Meal |
 |
 |
 |
| Meat | Sandwich | Sausage |
 |
||
| Vegetables |
| Cooling Type | Water-cooling | ||
| Upper FILM Width(mm) | 292 | 392 | 492 |
| Lower FILM Width (mm) | 322 | 422 | 522 |
| Packaging Material | Aluminium compound film | ||
| Material type | Solid | ||
| The Max.Forming depth of upper film(mm) | ≤5 | ||
| The Max.Forming depth of bottom film(mm) | ≤10 | ||
| Capacity(Times/min) | Vacuum,gas flushing+sealing 4-6 cycles/min | ||
| Chamber Dimension (L×W×H) (mm) | 284×(100-400) | 384×(200-400) | 484×(200-600) |
| External Dimensions (L×W×H) (mm) | 5200×1005×1895 | 5200×1105×1895 | 5200×1205×1895 |
| Net Weight (Kg) | Approx.1500 | Approx.2000 | Approx.2500 |
We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Our Hualian products have 7 categories and more than 200 products. We have nearly 30 years of export experience and export to more than 200 countries. The distributors of different categories and countries are different. You can consult our sales for details.
We have rich experience in exporting products. For the common problems of conventional products, we have compiled relevant information sets (FAQ Q&A, unpacking videos, after-sales videos, etc.); at the same time, we have a professional technical team. If you encounter special problems, our sales staff will organize technical groups to provide online guidance.
Each of our machines comes with a set of random accessories. If you have additional needs, you can reserve 1-2 years of easily damaged accessories when you purchase the machine. In addition, you can purchase them together when you purchase the next time. Even if it is an iterative accessory, Hualian will continue to provide it.
1) Before delivery, you can come to our company for on-site operation and training
2) You can apply for paid customer on-site installation
3) For Hualian’s VIP customers and professional dealers, you can apply for local or off-site training of sales and technical teams every 1-2 years
Email, real-time online communication, online video conferencing, domestic and foreign exhibitions, domestic and foreign customer visits.
Yes, you need to punch the die.
The lower film is made of PA/PP, and the upper film is PA/CPP.
Preheat first and then vacuum forming.
In order to better protect the life of the machine, it is recommended not to work continuously for more than 8 hours. If it exceeds 8 hours, it needs to be shut down and cooled for about half an hour before it can continue to work, otherwise it will shorten the service life of the vacuum pump and airbag.
It takes two people to replace it together1). Take out the lower mold of the molding chamber, be careful not to damage the tooth knife, and be careful not to bring out the O-type silicone strip2). Take out the lower mold of the vacuum chamber and replace it. The molds are all used as a set3). One disc cutter needs to be removed, and the upper seat of the disc cutter also needs to be removed, and then adjust the position of the disc cutter.
