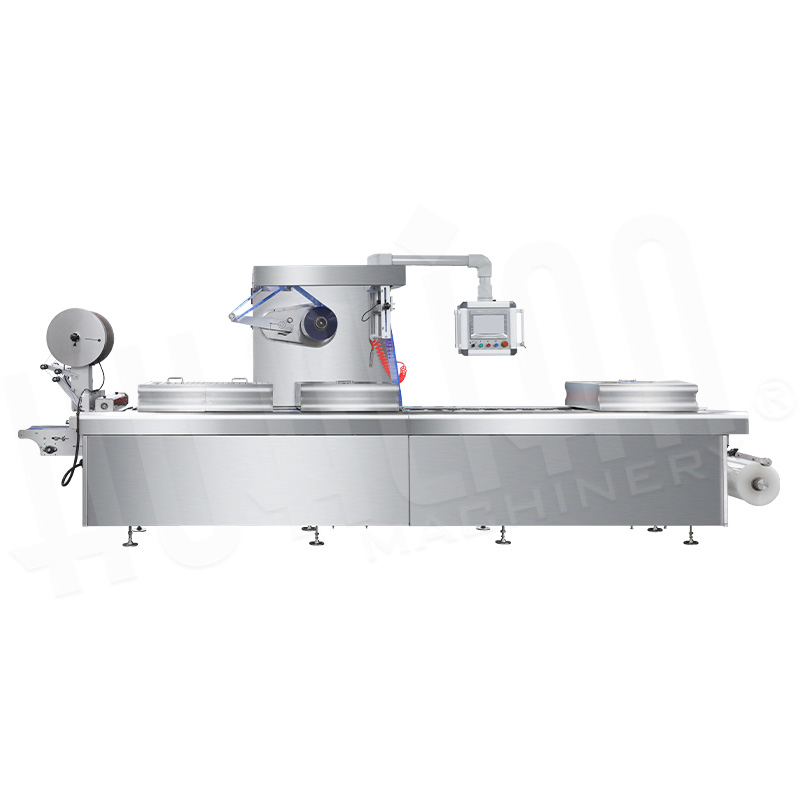

• HVR-A series table skin tray vacuum sealing machine
| √ | Keep Fresh | √ | High Production Output |
| √ | Double BUSCH Vacuum Pump | √ | Easy Maintenance With 304 SUS |
| √ | Applicable With Packaging Line |
Product Advantages
| Various Packaging Styles, Keep Food Fresh
Integrating vacuum sealing and Modified Atmosphere Packaging (MAP)capabilities,thermoforming packing machine not only extend shelf life butalso enhance appearence,meeting both functional and aesthetic demands infood retail. |
 |
 |
High Speed And High Efficiency, Saving Labor Costs
Equipped with German PUSCH vacuum pump, the working cycle speed is fast, and the output per hour can reach 360 cycles. And using Panasonic servo motor and driver, the chain positioning is accurate and the running speed is fast, which effectively reduces the operating cost of labor and equipment investment, and each device saves 5-6 peoples |
| Human-Computer Interaction, Intelligent Operation
Adopting Multi-language human-computer operation interface, it can be switched as needed, and built-in product operation parameters. |
 |
|
High Adaptability And Customizability
Suitable for soft film packaging, can be applied to various shapes of food packaging. At the same time, the type of incision can be selected, such as regular shape, tooth pattern and other shapes can be customized. |
| One Machine For Multiple Purposes
Multiple sets of mold interchange can be customized according to requirements, so that a single machine can meet molds of different sizes. |
 |
 |
Safe And Reliable
It Equipped with a safety protection system, automatic fault alarm and protection. All transmission parts, temperature-sensitive parts, cutting and moving parts are equipped with protective devices, and magnetic contact switches are installed. If the protective device is not in place, the magnetic contact switch will trigger an alarm and automatically shut down to ensure safe operation of the equipment. |
Application Field
 |
 |
 |
| Cheese | Chicken | Meal |
 |
 |
 |
| Meat | Sandwich | Sausage |
 |
||
| Vegetables |
| Model | HVR-320A | HVR-420A | HVR-520A |
| Voltage (V/Hz) | AC 380/50 | ||
| Sealing Power (W) | 2000 | ||
| Air Source(Mpa) | 0.5-0.6 | ||
| Chamber Dimension (L×W×H) (mm) | 300×（200-400） | 400×（200-400） | 500×（200-600） |
| Max. stretch depth (mm) | ≤80 | ||
| Vacuum Pump capacity (m³/h) | 100 or 160 or 200 | ||
| Capacity (times/min) | 4-6 times/min | ||
| Cooling Type | water-cooling | ||
| Upper FILM Width(mm) | 292 | 392 | 492 |
| Lower FILM Width (mm) | 322 | 422 | 522 |
| External Dimensions (L×W×H) (mm) | 4500×950×2000 | 4500×1050×2000 | 4500×1150×2000 |
| Net Weight (Kg) | Approx.1500 | Approx.1800 | Approx.2000 |
We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Our Hualian products have 7 categories and more than 200 products. We have nearly 30 years of export experience and export to more than 200 countries. The distributors of different categories and countries are different. You can consult our sales for details.
We have rich experience in exporting products. For the common problems of conventional products, we have compiled relevant information sets (FAQ Q&A, unpacking videos, after-sales videos, etc.); at the same time, we have a professional technical team. If you encounter special problems, our sales staff will organize technical groups to provide online guidance.
Each of our machines comes with a set of random accessories. If you have additional needs, you can reserve 1-2 years of easily damaged accessories when you purchase the machine. In addition, you can purchase them together when you purchase the next time. Even if it is an iterative accessory, Hualian will continue to provide it.
1) Before delivery, you can come to our company for on-site operation and training
2) You can apply for paid customer on-site installation
3) For Hualian’s VIP customers and professional dealers, you can apply for local or off-site training of sales and technical teams every 1-2 years
Email, real-time online communication, online video conferencing, domestic and foreign exhibitions, domestic and foreign customer visits.
Yes, you need to punch the die.
The lower film is made of PA/PP, and the upper film is PA/CPP.
Preheat first and then vacuum forming.
In order to better protect the life of the machine, it is recommended not to work continuously for more than 8 hours. If it exceeds 8 hours, it needs to be shut down and cooled for about half an hour before it can continue to work, otherwise it will shorten the service life of the vacuum pump and airbag.
It takes two people to replace it together1). Take out the lower mold of the molding chamber, be careful not to damage the tooth knife, and be careful not to bring out the O-type silicone strip2). Take out the lower mold of the vacuum chamber and replace it. The molds are all used as a set3). One disc cutter needs to be removed, and the upper seat of the disc cutter also needs to be removed, and then adjust the position of the disc cutter.
