| √ | High Efficiency | √ | High Output |
| √ | Easy Operation | √ | Multi-function |
Product Advantages
| High-efficiency

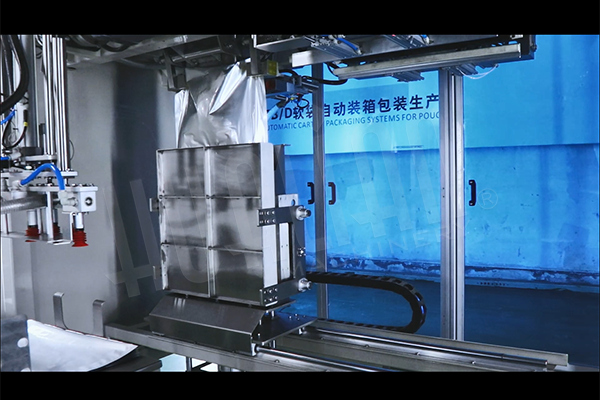

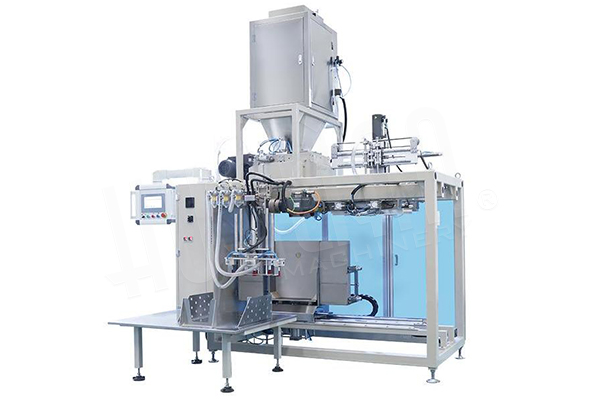

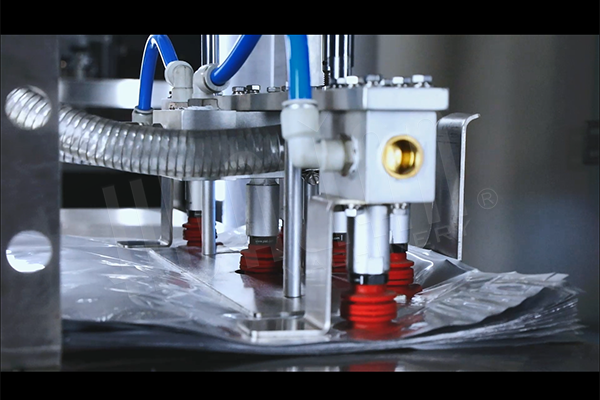

The bagging machine integrates multiple functions such as bag taking, bagging, bagging, vacuuming, forming and sealing. It can supply bags quickly. At the same time, the whole machine has strong linkage lines, which greatly improves the packaging production efficiency. |
 |
 |

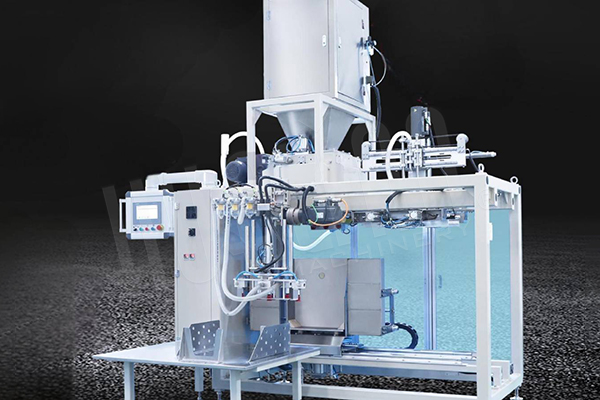

Matching Packaging line
The bagging machine can be matched with a packaging scale and connected to a conveyor to form a production line, automatically completing the entire packaging process. It saves labor costs and realizes unmanned production.  |
| Multi-function
The bagging machine has a bagging detection function. If the bagging fails, it will alarm and stop, and the empty bag will be taken away manually. It also has an automatic bag sorting function. When the packaging bag arrives at the position, the bag mouth will be automatically straightened. |
 |
 |

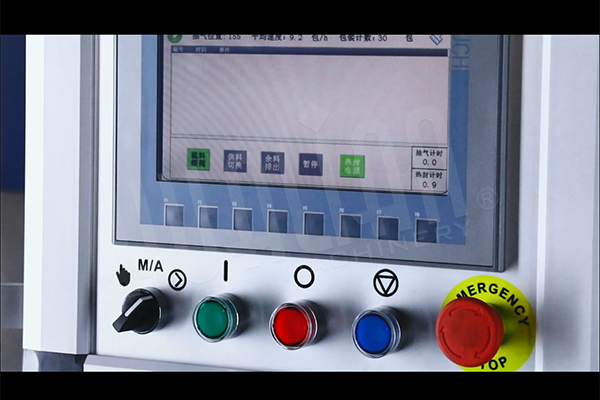

Smart Touch Screen
It uses a 9-inch Siemens intelligent touch screen, which is easy to operate and can be easily used without the assistance of personnel. At the same time, it can be programmable controlled for real-time monitoring. |
|
Convenience Of After-sales Repair Excellent after-sale purchase without worry Warranty is one year. Professional after-sale one -to-one Provide remote assistance services |
Application Field
 |
 |
 |
| Chemical Industry | Compound Fertilizer Industry | Engineering Plastic Industry |
 |
 |
 |
| Feed Industry | Food Additives Industry | Medical Intermediate |
| Model | ZSG-1000G |
| Voltage (V/Hz) | (3 PH) AC380/50 |
| Total Power(KW) | 3.5 |
| Capacity (bag/h) | ≤120 |
| Suitable Products | Granule or Tablet With 15-30KG |
| Air pressure (Mpa) | 0.6 |
| Vacuum Pumping Rate (m3/h) | 22.5 |
| Suitable Bag Size(LXW)(mm) | (800-900)X(500-560) |
| Sealing Style | Direct Sealing |
| Sealing Width(mm) | 8-15 |
| Bag Material | Aluminium foil bag/PE bag/PP bag |
We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Our Hualian products have 7 categories and more than 200 products. We have nearly 30 years of export experience and export to more than 200 countries. The distributors of different categories and countries are different. You can consult our sales for details.
We have rich experience in exporting products. For the common problems of conventional products, we have compiled relevant information sets (FAQ Q&A, unpacking videos, after-sales videos, etc.); at the same time, we have a professional technical team. If you encounter special problems, our sales staff will organize technical groups to provide online guidance.
Each of our machines comes with a set of random accessories. If you have additional needs, you can reserve 1-2 years of easily damaged accessories when you purchase the machine. In addition, you can purchase them together when you purchase the next time. Even if it is an iterative accessory, Hualian will continue to provide it.
1) Before delivery, you can come to our company for on-site operation and training
2) You can apply for paid customer on-site installation
3) For Hualian’s VIP customers and professional dealers, you can apply for local or off-site training of sales and technical teams every 1-2 years
Email, real-time online communication, online video conferencing, domestic and foreign exhibitions, domestic and foreign customer visits.
It is very flexible in use and can replace packaging bags of different specifications in a short time.
Our bagging machine has the function of automatically detecting whether the bag is in place.
