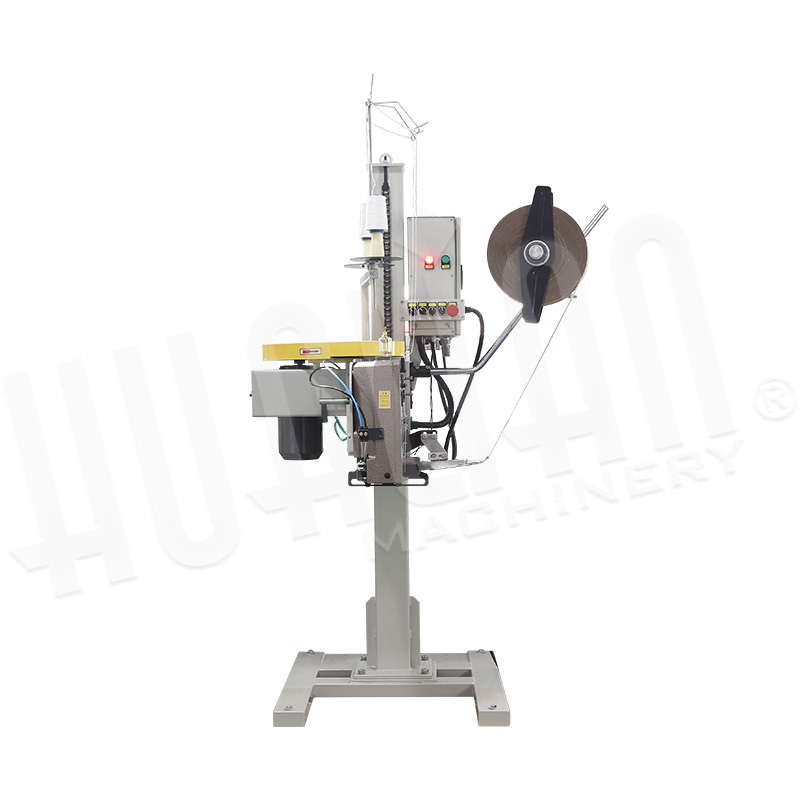

• FBS-10A / FBS-10B series Heavy-Duty Bag Stitching Machine
| √ | High Efficiency | √ | High Output |
| √ | Small Footprint | √ | Multi-function |
| √ | Good Sealing Appearance |
| •Mode Of Bag Top Packaging
Suit for stitching packing of paper bag or woven bags after bag top folded . |
•Sealing Procedure Sequence
FBS-10A：Trimming-Crepe paper tape-Stitching-Trimming FBS-10B：Crepe paper tape-Stitching-Trimming |
 |
|
Product Advantages
| Intelligent Automation
Automatic edge-binding stitching packaging machine for heavy-duty bag is suitable for edge-folding and stitching of krafe paper bag or plastic woven bags,knitting bag. it has wide application in the fields of foodstuff, feed, chemical industry. |
 |
 |
Strong Sewing System
This machine adopts photoelectric control system,which could automatically and continuously finish all the processes of edge-folding, stitching, thread-snipping etc. of plastic woven bags. Its pneumatic system acts the thread-snipping and lube spray |
| Multiple seal
It can make up an automatic production line with auto.counter, filling machine and conveyor. Optional device: Edge-folder, 5 digits counter, alarm of thread broken.
|
 |
| Convenience Of After-sales Repair
• Excellent after-sale purchase without worry |
|
Application Field
 |
 |
 |
| Chemical Industry | Compound Fertilizer Industry | Engineering Plastic Industry |
 |
 |
 |
| Feed Industry | Food Additives Industry | Medical Intermediate |
| Model | FBS-10A | FBS-10B |
| Voltage (V/Hz) | AC 380/50 | |
| Gross Power（KW) | 0.6 | 0.4 |
| Transmission Power（KW) | 0.18 | – |
| Motor Power of Sewing Machine（KW) | 0.37 | |
| Sealing Speed （m/min) | 10.5(Customized 8-13) | |
| Height From Sealing Center to the Floor (mm) | 700-1400 | |
| Air Source Pressure (Mpa) | 0.6 | |
| Paper Tape Width (mm) | 50 | |
| Sewing Machine Model | GK41(Optional GK-7C、DS-7C) | |
| Needle Mode | 80800×250# | |
| Sewing Machine Specification | 20S/6、20S/9 fiber thread | |
| Height Space Request of Bag Top | 150-170 | |
| Dimension(L×W×H) (mm) | 1400×1000×1870 | 750×1000×1870 |
| Net Weight (kg) | 200 | 150 |
We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Our Hualian products have 7 categories and more than 200 products. We have nearly 30 years of export experience and export to more than 200 countries. The distributors of different categories and countries are different. You can consult our sales for details.
We have rich experience in exporting products. For the common problems of conventional products, we have compiled relevant information sets (FAQ Q&A, unpacking videos, after-sales videos, etc.); at the same time, we have a professional technical team. If you encounter special problems, our sales staff will organize technical groups to provide online guidance.
Each of our machines comes with a set of random accessories. If you have additional needs, you can reserve 1-2 years of easily damaged accessories when you purchase the machine. In addition, you can purchase them together when you purchase the next time. Even if it is an iterative accessory, Hualian will continue to provide it.
1) Before delivery, you can come to our company for on-site operation and training
2) You can apply for paid customer on-site installation
3) For Hualian’s VIP customers and professional dealers, you can apply for local or off-site training of sales and technical teams every 1-2 years
Email, real-time online communication, online video conferencing, domestic and foreign exhibitions, domestic and foreign customer visits.
Regular maintenance, operation training, optimization of packaging materials
Food industry: such as the packaging of grain products such as rice and flour.
Chemical industry: such as the packaging of fertilizers, plastic particles and other products.
Building materials industry: such as the packaging of building materials such as cement, sand and gravel.
Yes, our bag dust removal function is to achieve this function
Yes, it is generally recommended that customers configure a 5-meter belt conveyor
Generally NEWLONG
Yes, the motor model and function of the explosion-proof motor can be communicated
